Copper-Brass 3-Row Radiator with Enhanced 4-Row Cooling — Compatible with 1965–1971 Rambler & AMC V8/Inline 6 Models

Description

P/N:  000180AANZ – Automatic w/Transmission Oil Cooler w/Factory A/C

P/N:  000180ANHZ – Automatic w/Transmission Oil Cooler w/o Factory A/C

P/N:  000180SANZ – Manual w/o w/Transmission Oil Cooler w/ Factory A/C

P/N:  000180SNHZ – Manual w/o w/Transmission Oil Cooler w/o Factory A/C

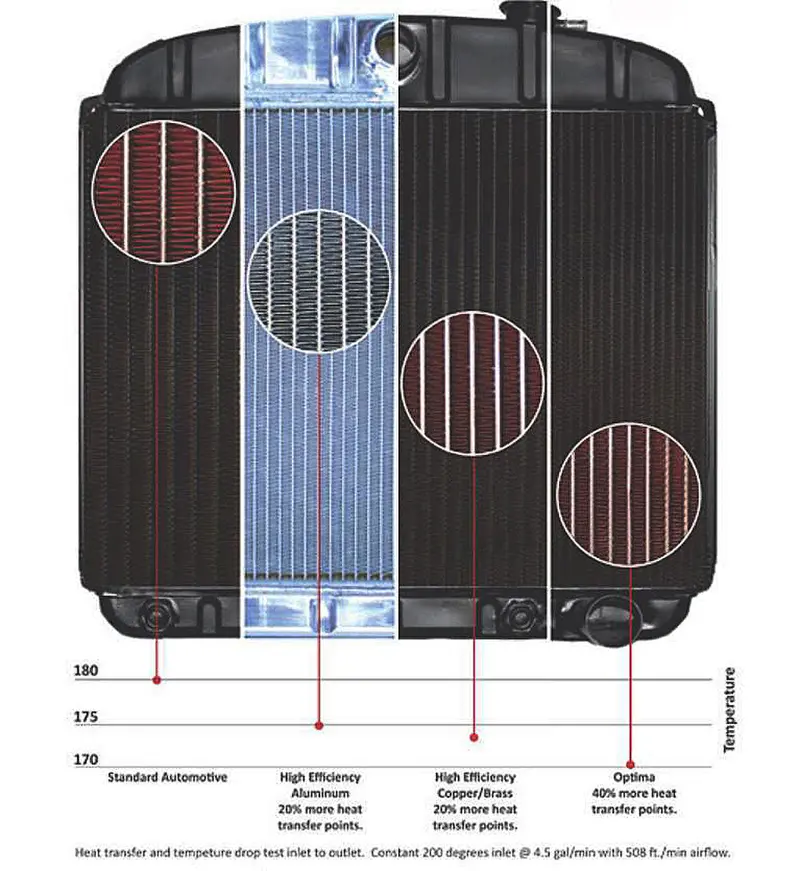

3-Row Desert Cooler Radiators w/4-Row Capacity – Copper 80’s style core with 1/2″ tubes on 3/8″ centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8″ centers. Copper/brass construction to ensure dependability.

Features:

• 3-row high-efficiency desert cooler design patterned after originals.
• Offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8″ centers
• Copper/brass construction, downflow style
• 100% MIG welded seams, brazed core, & no epoxy or sealers
• Made in the USA
• Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping

Specifications:

• Notes:  Brackets To Grille Side
• Material: Copper/Brass
• Core Size: 16-3/4 x 24-1/2 (automatic transmission only)
• Core Size:  14-1/2 x 24-1/2 (manual transmission w/o cooler & w/o factory A/C)
• Core Thickness:  2″
• Available Rows: 3
• Cooler Size:  6×1/8 NPT (automatic transmission only)
• Flow Type: Downflow
• Inlet Size: 1-1/2″
• Outlet Size: 1-1/2″
• Box Dimensions:  34 x 29 x 9
• Weight:  25 lbs.

Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.

AMC, American Motors, Rambler
Models	Years
Ambassador V-8	1965-1971
Ambassador 232 Inline 6	1965-1971
Gremlin 199/232/258 Inline 6	1970-1971
Hornet V8	1970-1971
Hornet 199/232 Inline 6	1970
Marlin V8	1967
Marlin 232 Inline 6	1967
