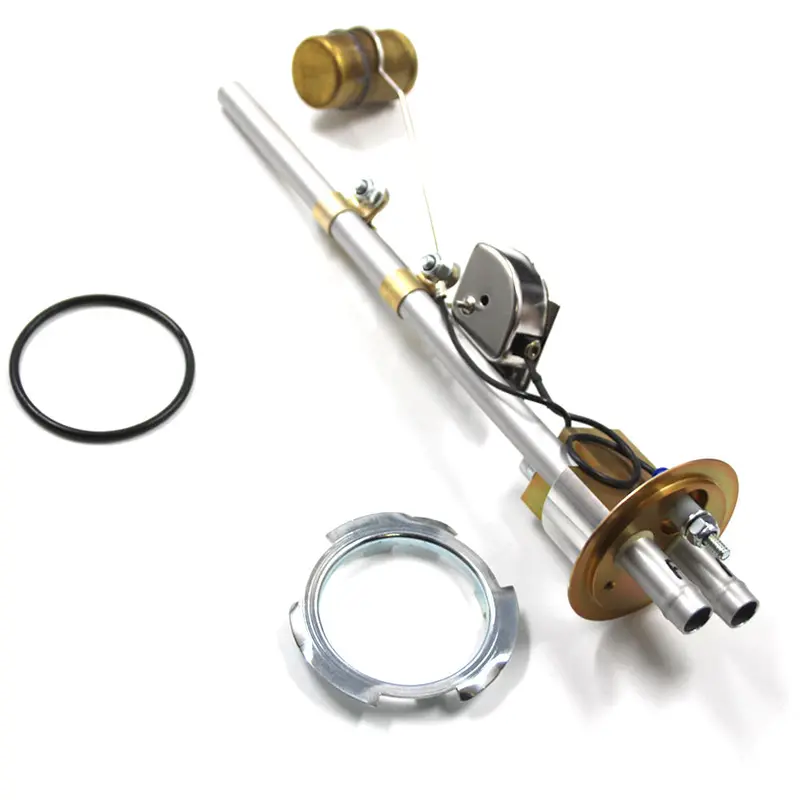

Fuel Level Sender Assembly – 1/2″ High-Flow Design Rated for 450–550 HP; Fits 1968–1970 AMC Javelin & AMX – Ships in 6–8 Weeks

Description

P/N:  AMC-7901
This custom high flow fuel pump sending unit for 1968-70 AMC Javelin and 1968-70 AMC AMX supports engines producing up to 550HP at the crank.  If you are making 450 to 550 horsepower, then this mod is a MUST have component for your AMC.

• For AMC-V8 engines up to 550 horsepower
• Drop-in replacement for factory 5/16″ or 3/8″ sending units
• A budget alternative to a fuel cell or weld-on sump
• Recommended for cars with engines over 450 hp
• Recommended for all cars with an electric fuel pump and return/bypass style regulator
• 1/2″ pickup and feed tubes reduce flow restriction to the suction side of the fuel pump
• 1/2″ return tube allows the use of a return/bypass regulator without modifying the fuel tank or switching to a fuel cell
• Return tube can be capped off if no return line is used
• Use with a reducer to connect 1/4″ vapor return line from a mechanical pump
• Billet aluminum base and aluminum tubes are anodized for use with gasoline or alcohol
• Stainless fuel level sending unit works with OEM fuel level gauges (73-10 ohm)
• Eliminates restrictive, difficult to service in-tank “sock” filter.
• Kit Includes:  Fuel sending unit, lock ring, gasket, and instructions
• Manufacturer Warranty: Limited Lifetime
• Country of Origin:  USA
• Weight:  3 pounds
• Dimensions:  4.4 x 4.4 x 14 inches
