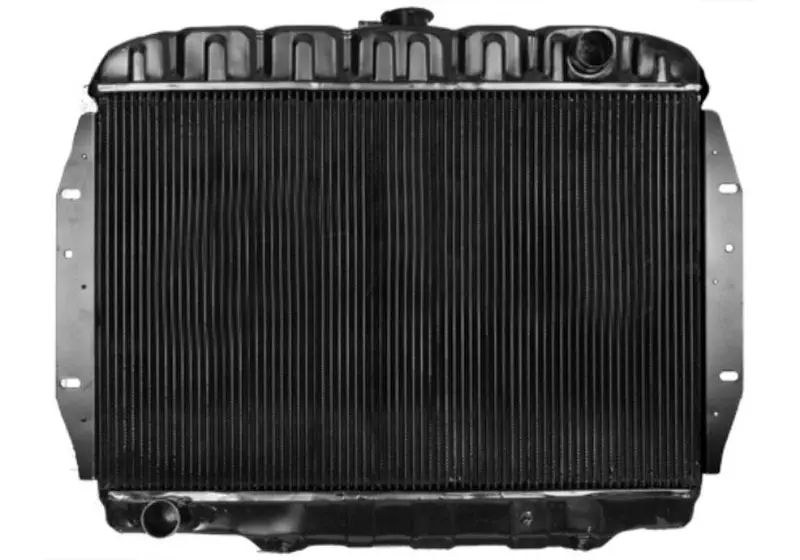

OEM-Style 3-Row Copper-Brass Radiator with 4-Row Cooling Capacity for 1971–1976 AMC 6-Cylinder Vehicles (Ambassador, Gremlin, Hornet, Matador)

Description

3-Row Desert Cooler Radiators w/4-Row Capacity – Copper 80’s style core with 1/2″ tubes on 3/8″ centers provide increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8″ centers. Copper/brass construction to ensure dependability.

Features:

• 3-row high-efficiency desert cooler design patterned after originals

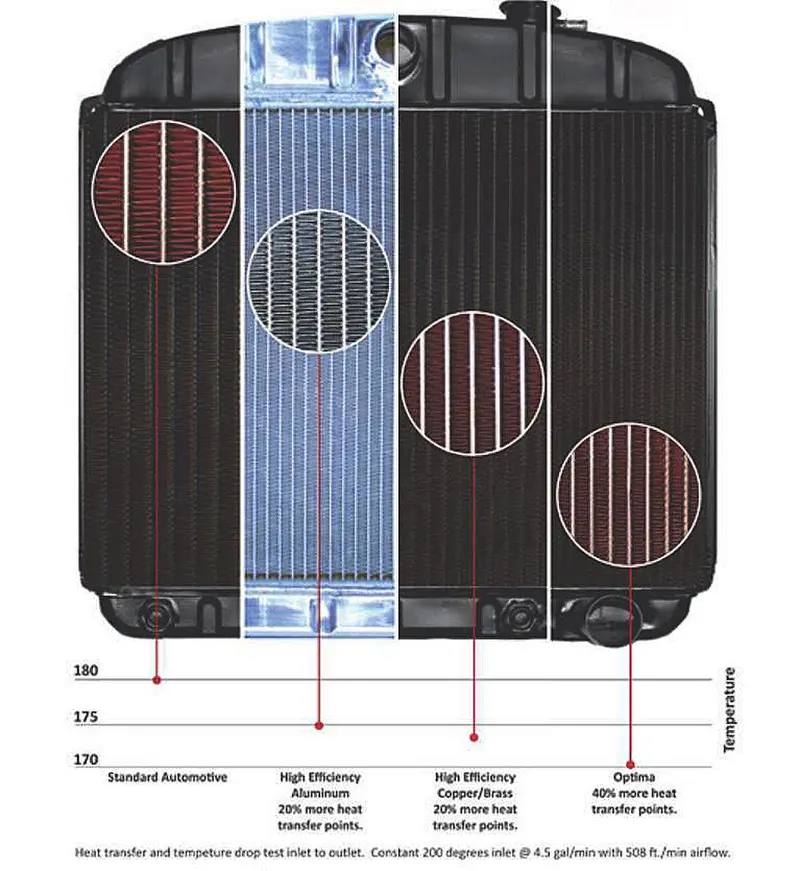

• More cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8″ centers
• Copper/brass construction, downflow style with standard core
• 100% MIG welded seams, brazed core, & no epoxy or sealers
• Made in the USA
• Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping

Specifications:

• Notes:  Brackets To Engine Side
• Material: Copper/Brass
• Core Size: 16-3/4 x 24-1/2
• Core Thickness:  2″
• Available Rows: 3
• Cooler Size:  6×1/8 NPT (automatic transmission only)
• Flow Type: Downflow
• Inlet Size: 1-1/2″
• Outlet Size: 1-1/2″
• Box Dimensions:  34 x 29 x 9
• Weights:  25 lbs.

Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.
